Standard: ASTM D-3441
Digunakan untuk menentukan cone resistance & friction resistance pada lapisan tanah.
Komponen:

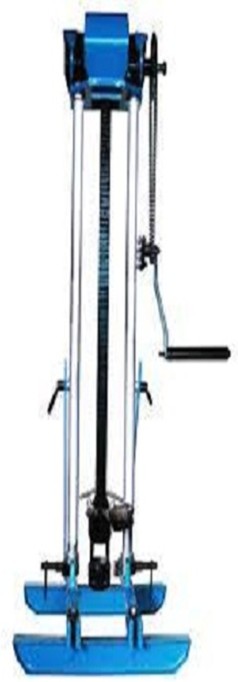

• Press-In Apparatus – Manually operated, 2.5 tons capacity (1 set)
• Sounding Rod – Machined steel, 36 mm OD, 1 m effective length, tapered thread (20 pcs)
• Plunger Rod – Round bar, 15 mm dia, 1 m length (20 pcs)
Adaptor Set:
• Push Adaptor (1 pc)
• Pull Adaptor (1 pc)
Spiral Anchor Assembly:
• Spiral Anchor – Machined steel, welded, 1.5 m length (4 pcs)
• Handle & T-piece – Machined steel, welded (1 set)
Cone Set:
• Mantel Cone – Hardened steel, 60°, 35.7 mm dia (1 pc)
• Friction Cone – Hardened steel with friction jacket, 60°, 35.7 mm dia (1 pc)
Wrenches & Tools Set:
• Pipe wrench (2), adjustable wrench, spanner wrench, allen key,
• Screwdriver, oil can, steel brush, piston wrench,
• Seal tape (2), oil seals (2), steel box (1)
Fasten Press:
• Long Fasten Press – 1.5 m; 8 cm width (2 pcs)
• Short Fasten Press – 1 m; 12 cm width (2 pcs)
Manometers:
• 60 kg/cm² (1 pc)
• 250 kg/cm² (1 pc)
